مضخة عجائن

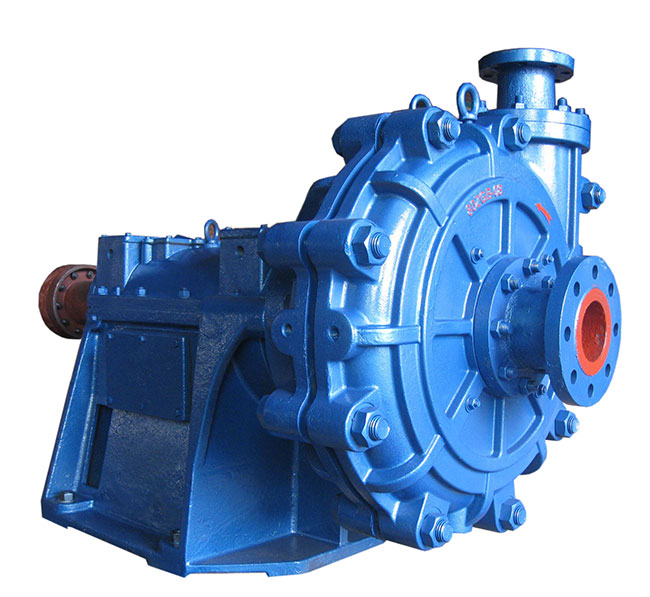

Pump Type: Single-Stage Centrifugal Slurry Pump
Capacity: 4-2333m³/h
Head: 9.1-133m
Size: input DN40-DN350，output DN40-DN300
Original: China
DESCRIPTION
SLSZJ horizontal centrifugal slurry pump is a single-stage single-suction centrifugal slurry pump, which is designed and developed by domestic excellent hydraulic model selected by our company in conjunction with domestic pump experts.The pump body shall be of double metal structure inside and outside, the pump shell shall be vertical and open in the middle, and the outlet can be pressed 45.The intervals rotate by eight different positions.This product is efficient, energy saving, long service life, light weight, reasonable structure, reliable operation, convenient maintenance.
APPLICATIONS
SLSZJ horizontal centrifugal slurry pump is suitable for power, gold, coal, building materials and other industries. The treatment medium is abrasive or corrosive slurry containing solid particles. The concentration of solid-liquid mixing mortar is 45%, the slurry is 60%, the temperature of the medium is W60P, and the pump can be used in multiple stages.

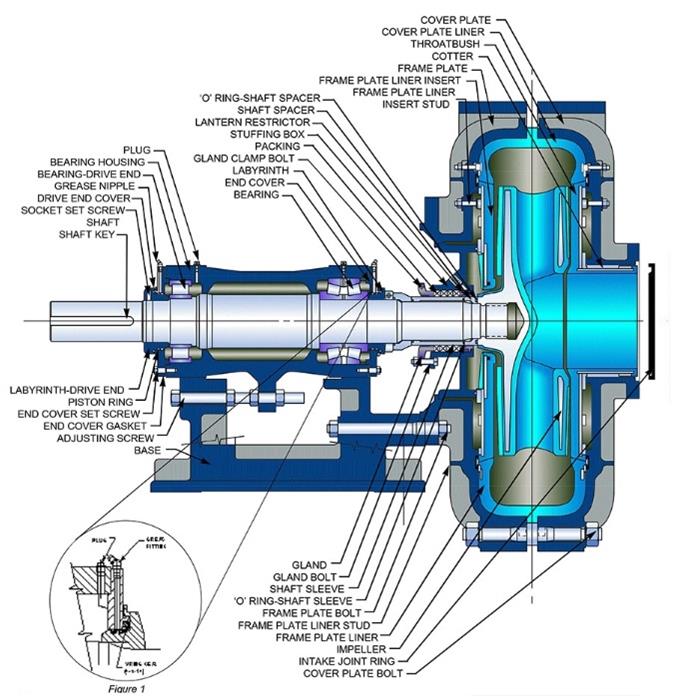

CONSTRUCTION DRAWING
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 40SLSZJ | 4-23 | 9.1-45 | 1400-2900 | 53 | 7.5 | 40 | 40 |
| 50SLSZJ | 17-111 | 14.5-110.7 | 970-1480 | 45 | 30 | 80 | 50 |
| 65SLSZJ | 28-79 | 11-35 | 960-1460 | 63 | 15 | 100 | 65 |
| 80SLSZJ | 60-242 | 15.7-110 | 980-1480 | 67 | 160 | 125 | 80 |
| 100SLSZJ | 86-360 | 16-100 | 980-1480 | 70 | 160 | 150 | 100 |
| 150SLSZJ | 119-841 | 19.4-91 | 730-1480 | 76 | 200 | 200 | 150 |
| 200SLSZJ | 296-950 | 29-133 | 730-980 | 79 | 560 | 250 | 200 |
| 250SLSZJ | 400-1573 | 29-128 | 730-980 | 76 | 800 | 300 | 250 |
| 300SLSZJ | 588-2333 | 21.5-77 | 730-980 | 81 | 630 | 350 | 300 |
