مضخة عجائن
Pump Type: Centrifugal
Capacity: 7.2-1290m³/h
Head: 12-91.8m
Size: Suction DN50-DN250，Discharge DN25-DN250
Original: China
DESCRIPTION
SLSPN type mud pump is a horizontal single stage single suction cantilever centrifugal mud pump, is our company combined with domestic pump experts selected excellent hydraulic model design and development.The overcurrent parts are made of wear-resistant alloy material with long service life.The impeller is threaded or keyed to the shaft.The clearance between impeller and jacket and impeller and guard plate can be adjusted to maintain high efficiency.The pump body adopts vertical open structure, which is easy to disassemble and repair.
APPLICATIONS
SLSPN type mud pump can be used for conveying solid-liquid two-phase fluid in mines, and can also be used for conveying various kinds of slurry in building materials, paper making, food, feed and other departments.The maximum concentration of transport is 50-60%.

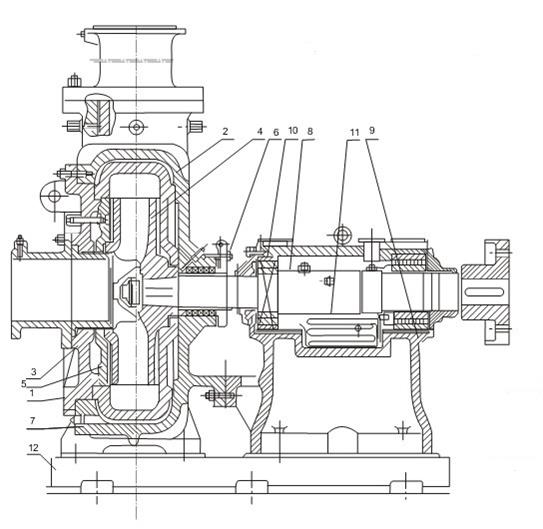

CONSTRUCTION DRAWING
1. Cover Plate 2. Frame Plate 3. Cover Plate 4. Impeller 5. Cover Plate Liner 6. Shaft Sleeve 7. Volute Liner 8. Shaft 9. Frame 10. Bearing Gland 11. Cooling water box pipe 12. Basement
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 1SLSPN | 7.2-16 | 12-14 | 1430 | 35 | 3 | 50 | 25 |
| 2SLSPN | 30-58 | 17-22 | 1450 | 39 | 11 | 96 | 50 |
| 3SLSPN | 54-151 | 15-26 | 1470 | 42 | 22 | 125 | 75 |
| 4SLSPN | 100-200 | 37-41 | 1470 | 61 | 55 | 150 | 100 |
| 6SLSPN | 230-320 | 25-27 | 980 | 62 | 75 | 200 | 150 |
| 8SLSPN | 450-600 | 62-65 | 980 | 63 | 215 | 200 | 200 |
| 10SLSPN | 768-1290 | 85-91.8 | 980 | 63 | 780 | 250 | 250 |
