Pump Type: Centrifugal
Capacity: 100-1430m³/h
Head: 37-92m
Size: Suction DN150-DN350，Discharge DN100-DN250
Original: China
DESCRIPTION

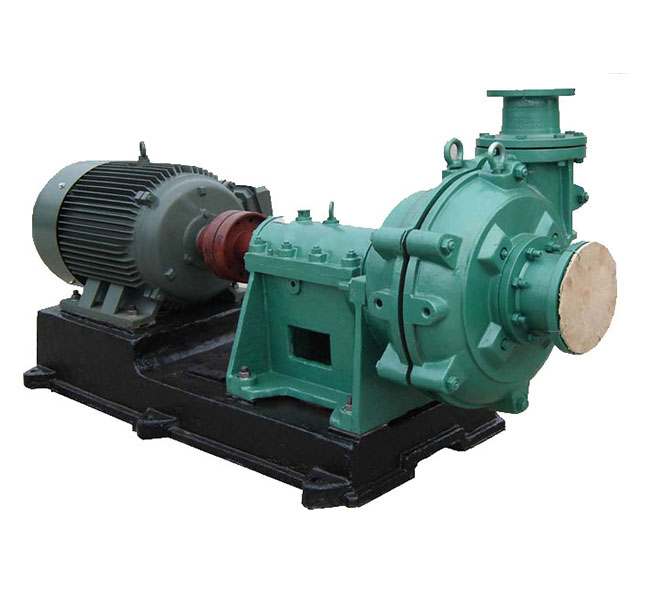

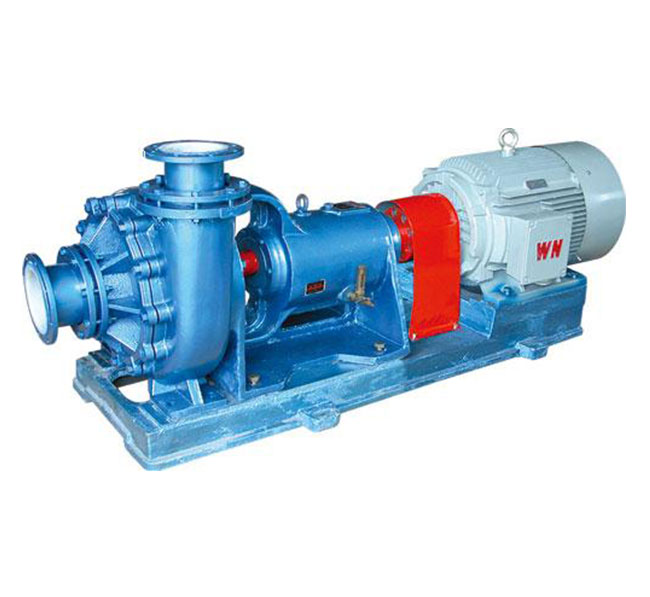

SLSPH type ash and slag pump is a single-stage, single-suction, horizontal centrifugal pump. The flow passing part of SLSPH type pump is made of wear resistant alloy material.The clearance between impeller and guard plate can be adjusted in time to keep efficient work.The shaft seal adopts packing seal.The pump has the characteristics of simple structure, reliability, convenient maintenance and long service life.Same position.
APPLICATIONS
SLSPH type ash and slag pump is mainly used in coal mine, coal washing plant, concentrator, concentrate, tailings, power plant, water ash and liquid containing solid particles.The conveying concentration is 50-60%.

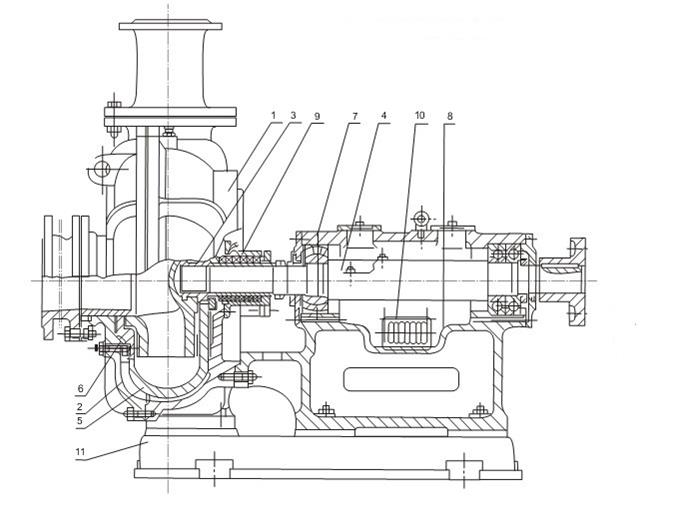

CONSTRUCTION DRAWING
1. Frame Plate 2. Cover Plate 3. Impeller 4. Shaft 5. Throat Bush 6. Cover Plate Liner Insert 7. Bearing Gland 8.Frame 9. Stuffing Box 10. Cooling water box pipe 11. Basement
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 4SLSPH | 100-200 | 37-41 | 1470 | 61 | 45 | 150 | 100 |
| 4SLSPH-60 | 140-220 | 59-61 | 1470 | 60 | 75 | 150 | 100 |
| 6SLSPH | 330-550 | 45-62 | 1470 | 62 | 155 | 200 | 150 |
| 8SLSPH | 450-600 | 62-65 | 980 | 63 | 215 | 200 | 200 |
| 10SLSPH | 585-1290 | 47.5-91.8 | 730/980 | 60 | 780 | 250 | 250 |
| 250SLSPH | 585-1430 | 46.5-77 | 590/740 | 58-73 | 475 | 350 | 250 |
