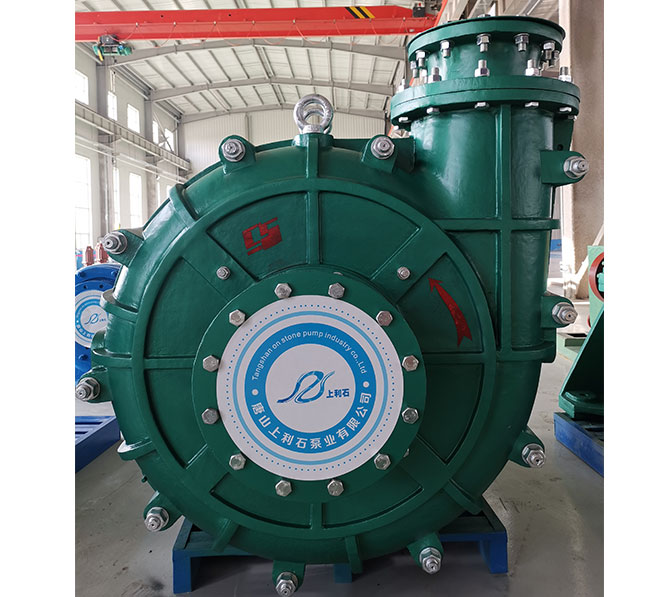

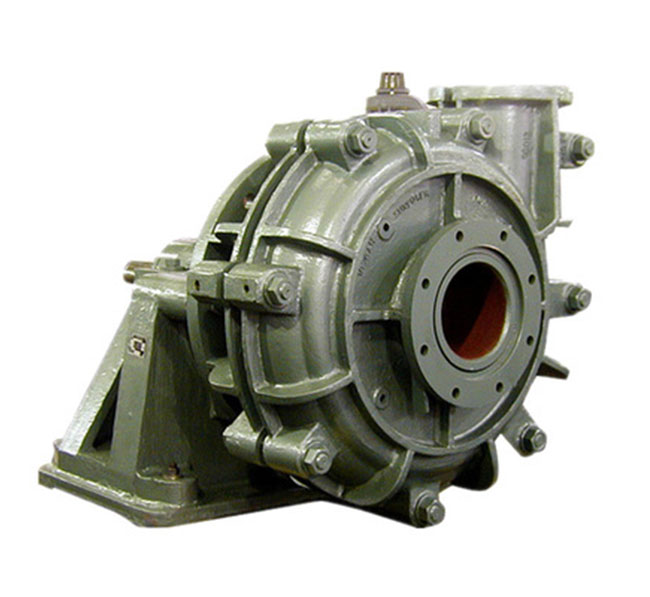

مضخة عجائن
Pump Type: Centrifugal
Capacity: 5-414m³/h
Head: 16-100m
Size: Suction DN38-DN150, Discharge DN25-DN100
Original: CHINA
DESCRIPTION
SLSHH high-lift slurry pump is a single-stage, single-suction, cantilever centrifugal heavy-duty slurry pump. It is designed and developed by our company in conjunction with domestic pump experts to select domestic excellent hydraulic model.The lining of pump body and impeller are made of wear resistant metal only.The pump has high efficiency, energy saving, long service life, light weight, wide performance range, good cavitation performance, reasonable structure, reliable operation, convenient maintenance, the outlet can rotate eight different positions according to 45° interval.
APPLICATIONS
SLSHH type high lift slurry pump is used to transport corrosive or high hardness of solid particles of mud.Heavy-duty slurry pump is suitable for conveying low-density, high-lift slurry or high-density, low-abrasion slurry. It is widely used in mining, electric power, metallurgy, coal and other industries, as well as environmental protection industries。

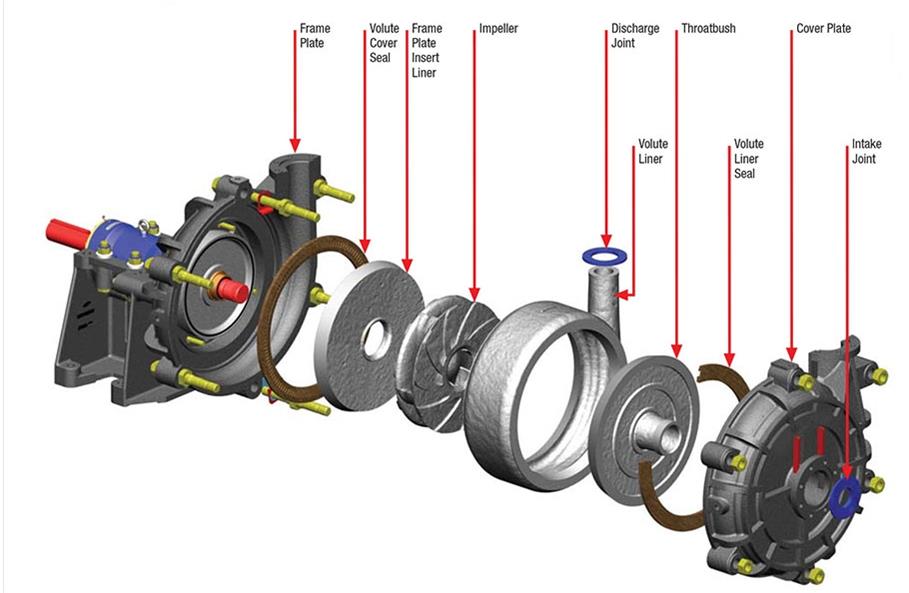

CONSTRUCTION DRAWING
PERFORMANCE PARAMETERS
Type | Capacity/Q(m3/h) | Head (m) | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
---|---|---|---|---|---|---|---|
Suction | Discharge | ||||||
1.5/1C-HH | 5-18 | 36.2-88 | 1400-2200 | 24 | 30 | 38 | 25 |
3/2D-HH | 18-86.4 | 28-88 | 850-1450 | 45 | 55 | 76 | 51 |
4/3E-HH | 43.2-201.6 | 29.7-99.4 | 800-1400 | 47 | 110 | 102 | 76 |
6/4F-HH | 100-414 | 34-98 | 600-1000 | 60 | 250 | 150 | 100 |
4/3X-HH | 36-201 | 16-85 | 700-1350 | 54 | 110 | 102 | 76 |
6/4X-HH | 100-414 | 34-98 | 600-1000 | 60 | 250 | 150 | 100 |
