مضخة الصرف الصحي
Pump Type: Centrifugal
Capacity: 5-800m³/h
Head: 12-80m
Size: Suction DN25-DN300，Discharge DN20-DN250
Original: China
DESCRIPTION
SLSZW type self-priming sewage pump is a single-stage suction, horizontal centrifugal sewage pump.
According to my company member ZX type self-priming centrifugal pump and the structure and performance of type WQ sewage pump, the advantages of similar products at home and abroad for reference, and absorb many customers use requirement and advice, developed into a set of self-priming and drainage in use, mobile, easy installation, little maintenance, stable performance.
APPLICATIONS
SLSZW self-suction non-blocking sewage pump can not only be like the general clean water self-suction pump without the need for bottom valve, without the need for irrigation water, but also can suction containing large particle solid diameter of 60% of the outlet diameter and fiber length of 1.5 times the impeller diameter of sewage, sediment, waste ore impurities,and all engineering sewage and rubber liquid.

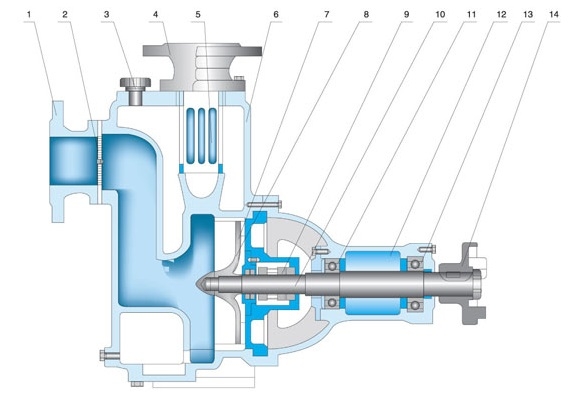

CONSTRUCTION DRAWING
1. Suction 2. Check valve 3. Plug 4. Discharge 5. Flash chamber 6. Frame Plate 7. Cover Plate 8. Impeller
9. Seal 10. Shaft 11. Front Bearing 12. Bearing House 13. Bearing 14. Shaft Coupling
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 25SLSZW | 8 | 15 | 2900 | 45 | 1.5 | 25 | 20 |
| 32SLSZW | 5-10 | 20-30 | 2900 | 48 | 3 | 32 | 25 |
| 40SLSZW | 10-20 | 15-30 | 2900 | 48 | 3 | 40 | 32 |
| 50SLSZW | 10-20 | 12-35 | 2900 | 48 | 5.5 | 50 | 40 |
| 65SLSZW | 25-65 | 18-40 | 1450-2900 | 50 | 7.5 | 65 | 50 |
| 80SLSZW | 25-80 | 16-45 | 1450-2900 | 55 | 30 | 80 | 65 |
| 100SLSZW | 80-120 | 15-80 | 1450-2900 | 55 | 45 | 100 | 80 |
| 125SLSZW | 120 | 20 | 1450 | 55 | 15 | 125 | 100 |
| 150SLSZW | 180 | 20-38 | 1450 | 65 | 55 | 150 | 125 |
| 200SLSZW | 280-300 | 14-28 | 1450 | 65 | 45 | 200 | 150 |
| 250SLSZW | 420 | 22 | 1450 | 61 | 55 | 250 | 200 |
| 300SLSZW | 800 | 14 | 1450 | 65 | 55 | 300 | 250 |
