مضخة الصرف الصحي
Pump Type: Centrifugal
Capacity: 8.4-3000m³/h
Head: 6-45m
Size: Suction DN50-DN600，Discharge DN40-DN500
Original: China
DESCRIPTION

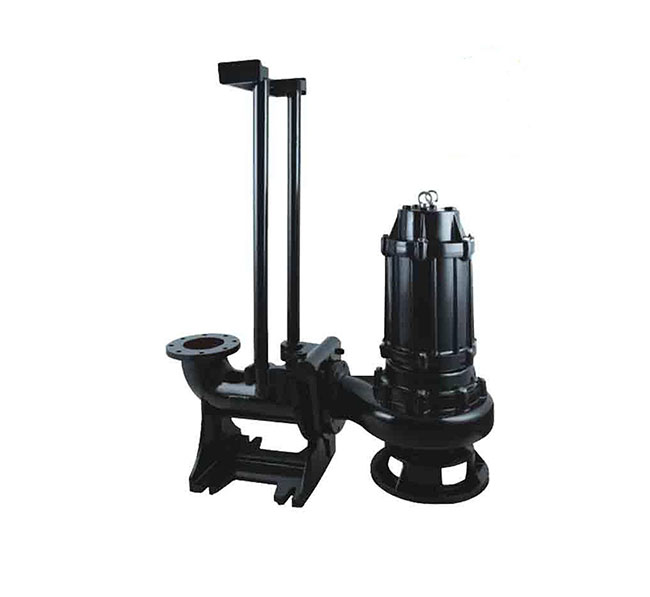

SLSWQ series submersible sewage pump is a single stage single suction, vertical centrifugal pump, by blade wheel, pump body, pump shaft, shaft seal, bearing, motor components, coupling device and other main components, with winding overheating and leakage protection functions.With high efficiency and energy saving, strong reliability;Simple structure, easy dis-assembly, maintenance, control, economical and practical. Various installation methods and other characteristics.
APPLICATIONS
SLSWQ series submersible sewage pump is mainly used in municipal engineering, building construction, industrial sewage disposal and sewage treatment occasions to discharge sewage, waste water and rainwater containing solid and staple fiber

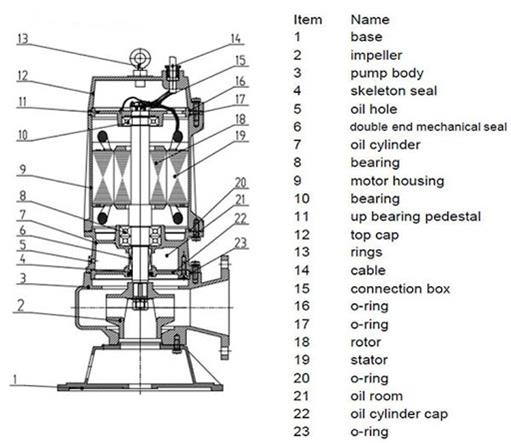

CONSTRUCTION DRAWING
PERFORMANCE PARAMETERS
| Size | Discharge (mm) | Capacity(m3/h) | Head(m) | Speed (r/min) | Power(kw) | Efficiency(%) |
|---|---|---|---|---|---|---|
| 25QW8-22-1.1 | 25 | 8 | 22 | 2825 | 1.1 | 38.1 |
| 32QW12-15-1.1 | 32 | 12 | 15 | 2825 | 1.1 | 40 |
| 40QW15-15-1.5 | 40 | 15 | 15 | 2840 | 1.5 | 45.1 |
| 40QW15-30-2.2 | 40 | 15 | 30 | 2840 | 2.2 | 18 |
| 50QW20-7-0.75 | 50 | 20 | 7 | 1390 | 0.75 | 54 |
| 50QW10-10-0.75 | 50 | 10 | 10 | 1390 | 0.75 | 56 |
| 50QW20-15-1.5 | 50 | 20 | 15 | 2840 | 1.5 | 55 |
| 50QW15-25-2.2 | 50 | 15 | 25 | 2840 | 2.2 | 56 |
| 50QW18-30-3 | 50 | 18 | 30 | 2880 | 3.0 | 58 |
| 50QW25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 53 |
| 50QW20-40-7.5 | 50 | 20 | 40 | 2900 | 7.5 | 55 |
| 65QW25-15-2.2 | 65 | 25 | 15 | 2840 | 2.2 | 52 |
| 65QW37-13-3 | 65 | 37 | 13 | 2880 | 3.0 | 55 |
| 65QW25-30-4 | 65 | 25 | 30 | 2890 | 4.0 | 58 |
| 65QW30-40-7.5 | 65 | 30 | 40 | 2900 | 7.5 | 56 |
| 65QW35-50-11 | 65 | 35 | 50 | 2930 | 11 | 60 |
| 65QW35-60-15 | 65 | 35 | 60 | 2930 | 15 | 63 |
| 80QW40-7-2.2 | 80 | 40 | 7 | 1420 | 2.2 | 52 |
| 80QW43-13-3 | 80 | 43 | 13 | 2880 | 3.0 | 50 |
| 80QW40-15-4 | 80 | 40 | 15 | 2890 | 4.0 | 57 |
| 80QW65-25-7.5 | 80 | 65 | 25 | 2900 | 7.5 | 56 |
| 100QW80-10-4 | 100 | 80 | 10 | 1440 | 4.0 | 62 |
| 100QW110-10-5.5 | 100 | 110 | 10 | 1440 | 5.5 | 66 |
| 100QW100-15-7.5 | 100 | 100 | 15 | 1440 | 7.5 | 67 |
| 100QW85-20-7.5 | 100 | 85 | 20 | 1400 | 7.5 | 68 |
| 100QW100-25-11 | 100 | 100 | 25 | 1460 | 11 | 65 |
| 100QW100-30-15 | 100 | 100 | 30 | 1470 | 15 | 66 |
| 100QW100-35-18.5 | 100 | 100 | 35 | 1460 | 18.5 | 65 |
| 125QW130-15-11 | 125 | 130 | 15 | 1460 | 11 | 62 |
| 125QW130-25-15 | 125 | 130 | 20 | 1440 | 15 | 63 |
| 150QW145-6-7.5 | 150 | 145 | 6 | 1470 | 7.5 | 63 |
| 150QW180-15-15 | 150 | 180 | 15 | 1470 | 15 | 65 |
| 150QW180-20-18.5 | 150 | 180 | 20 | 1470 | 18.5 | 75 |
| 150QW180-25-22 | 150 | 180 | 25 | 1470 | 22 | 76 |
| 150QW130-30-22 | 150 | 130 | 30 | 1470 | 22 | 75 |
| 150QW180-30-30 | 150 | 180 | 30 | 970 | 30 | 73 |
| 150QW200-30-37 | 150 | 200 | 30 | 970 | 37 | 70 |
| 200QW300-7-11 | 200 | 300 | 7 | 1470 | 11 | 73 |
| 200QW250-11-15 | 200 | 250 | 11 | 1470 | 15 | 74 |
| 200QW400-10-22 | 200 | 400 | 10 | 1470 | 22 | 76 |
| 200QW400-13-30 | 200 | 400 | 13 | 1470 | 30 | 73 |
| 200QW250-11-15 | 200 | 250 | 15 | 1470 | 18.5 | 72 |
| 200QW300-15-22 | 200 | 300 | 15 | 1470 | 22 | 73 |
| 200QW250-22-30 | 200 | 250 | 22 | 1470 | 30 | 71 |
| 200QW350-25-37 | 200 | 350 | 25 | 1470 | 37 | 75 |
| 200QW400-30-55 | 200 | 400 | 30 | 1480 | 55 | 70 |
| 250QW600-9-30 | 250 | 600 | 9 | 980 | 30 | 74 |
| 250QW600-12-37 | 250 | 600 | 12 | 1480 | 37 | 78 |
| 250QW600-15-45 | 250 | 600 | 15 | 1480 | 45 | 75 |
| 250QW600-20-55 | 250 | 600 | 20 | 1480 | 55 | 73 |
| 250QW600-25-75 | 250 | 600 | 25 | 1480 | 75 | 73 |
| 300QW800-12-45 | 300 | 800 | 12 | 1480 | 45 | 76 |
| 300QW500-15-45 | 300 | 500 | 15 | 980 | 45 | 70 |
| 300QW800-15-55 | 300 | 800 | 15 | 980 | 55 | 73 |
| 300QW600-20-55 | 300 | 600 | 20 | 980 | 55 | 75 |
| 300QW800-20-75 | 300 | 800 | 20 | 980 | 75 | 78 |
| 300QW950-20-90 | 300 | 950 | 20 | 980 | 90 | 80 |
| 300QW1000-25-110 | 300 | 1000 | 25 | 980 | 110 | 82 |
| 300QW1100-10-55 | 300 | 1100 | 10 | 980 | 55 | 84.5 |
| 350QW1500-15-90 | 350 | 1500 | 15 | 980 | 90 | 83.1 |
| 350QW1200-18-90 | 350 | 1200 | 18 | 980 | 90 | 83.2 |
| 350QW1100-28-132 | 350 | 1100 | 28 | 740 | 132 | 78.5 |
| 350QW1000-36-160 | 350 | 1000 | 36 | 740 | 160 | 82.1 |
| 400QW1500-10-75 | 400 | 1500 | 10 | 980 | 75 | 82.1 |
| 400QW2000-15-132 | 400 | 2000 | 15 | 740 | 132 | 82.5 |
| 400QW1700-22-160 | 400 | 1700 | 22 | 740 | 160 | 82.1 |
| 400QW1500-26-160 | 400 | 1500 | 26 | 740 | 160 | 83.5 |
| 400QW1700-30-200 | 400 | 1700 | 30 | 740 | 200 | 83.5 |
| 400QW1800-32-250 | 400 | 1800 | 32 | 740 | 250 | 82.1 |
| 400QW1760-7.5-55 | 400 | 1760 | 7.5 | 580 | 55 | 82.3 |
| 500QW2500-10-110 | 500 | 2500 | 10 | 740 | 110 | 82 |
| 500QW2600-15-160 | 500 | 2600 | 15 | 740 | 160 | 83 |
| 500QW3000-15-220 | 500 | 3000 | 15 | 740 | 220 | 83 |
| 500QW2400-22-220 | 500 | 2400 | 22 | 740 | 220 | 84 |
| 500QW2600-24-250 | 500 | 2600 | 24 | 740 | 250 | 82 |
| 500QW3000-24-280 | 500 | 3000 | 24 | 740 | 280 | 82 |
