مضخة الصرف الصحي
Pump Type: Centrifugal
Capacity: 7-1140m³/h
Head: 5.6-46m
Size: Suction DN50-DN350，Discharge DN40-DN300
Original: China
DESCRIPTION
SLSPYW type hydraulic sewage pump is a vertical, single-stage, single-suction centrifugal sewage pump, mainly composed of motor, coupling, pump shaft, impeller, pump body, water outlet pipe and other parts, is our company combined with domestic experts to select domestic excellent hydraulic model design and development.Suitable for conveying belt particles of sewage, sewage, can also be used to pump clean water and corrosive media.
APPLICATIONS
SLSPYW type liquid sewage pump is suitable for chemical industry, petrochemical industry, pharmaceutical industry, mining, paper industry, cement plant, steel plant, power plant, coal processing industry and urban sewage treatment plant drainage system, municipal engineering construction site and other industries, conveyer belt particles of sewage. It can also be used to pump clean water and corrosive medium.

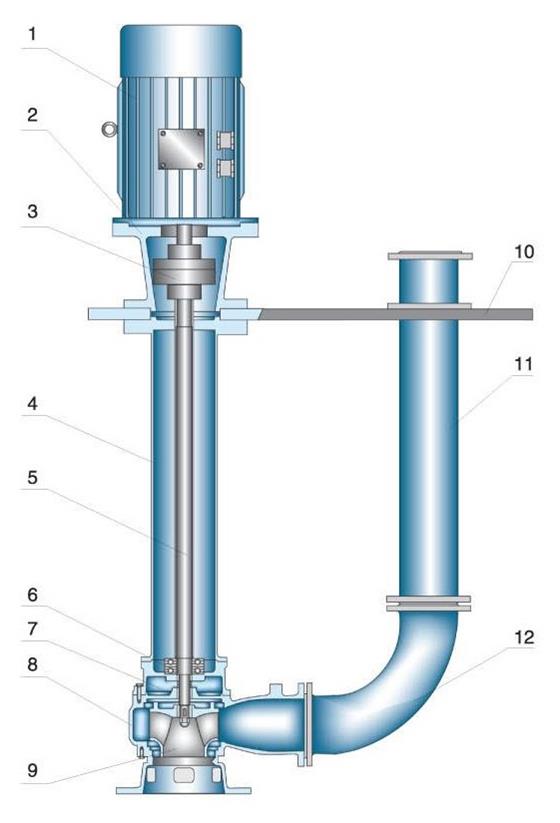

CONSTRUCTION DRAWING
1. Motor 2. Motor Basement 3. Shaft Coupling 4. Coupling Pipe
5. Shaft 6. Bearing 7. Cover Plate 8. Frame Plate 9. Impeller
10. Basement 11. Discharge12. Elbow
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 40SLSYW | 8.4-14 | 14-16 | 2900 | 48 | 1.5 | 50 | 40 |
| 50SLSYW | 7-48 | 8-36 | 2900 | 67 | 7.5 | 65 | 50 |
| 65SLSYW | 17.5-45 | 11-30 | 2900 | 58 | 4 | 80 | 65 |
| 80SLSYW | 20-60 | 7-27.5 | 2900 | 72 | 7.5 | 100 | 80 |
| 100SLSYW | 35-132 | 5.6-38.5 | 1450 | 75 | 15 | 150 | 100 |
| 150SLSYW | 91-252 | 5.6-46 | 1450 | 80 | 37 | 200 | 150 |
| 200SLSYW | 175-720 | 5.7-44.5 | 1450 | 82 | 75 | 250 | 200 |
| 250SLSYW | 420-840 | 9-35 | 1450 | 83 | 90 | 300 | 250 |
| 300SLSYW | 280-1140 | 6.7-27 | 1450 | 84.5 | 110 | 350 | 300 |
