مضخة الصرف الصحي
Pump Type: Centrifugal
Capacity: 10-700m³/h
Head: 9.5-37m
Size: Suction DN50-DN250，Discharge DN50-DN200
Original: China
DESCRIPTION

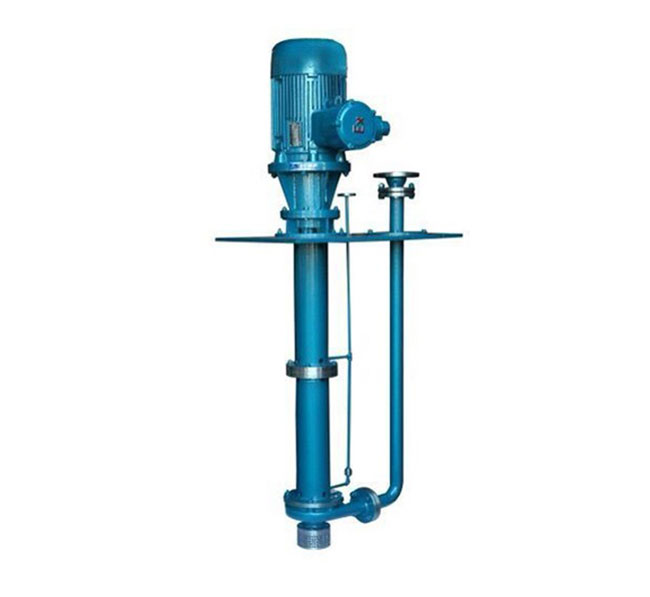

SLSPWL type vertical centrifugal sewage pump is a vertical, single-stage, single-suction centrifugal sewage pump, which is mainly composed of motor, coupling, pump shaft, impeller, pump body, outlet pipe and other parts. It is the design and development of domestic excellent hydraulic model selected by our company in conjunction with domestic pump experts.It is suitable for transporting the liquid with fiber or other suspended matter below 80℃ to the city, industrial and mining enterprises for discharging sewage and excrement.
APPLICATIONS
SLSPWL type vertical centrifugal sewage pump is suitable for transporting the liquid with fiber or other suspended matter below 80℃, which is used for discharging sewage, industrial and mining enterprises.

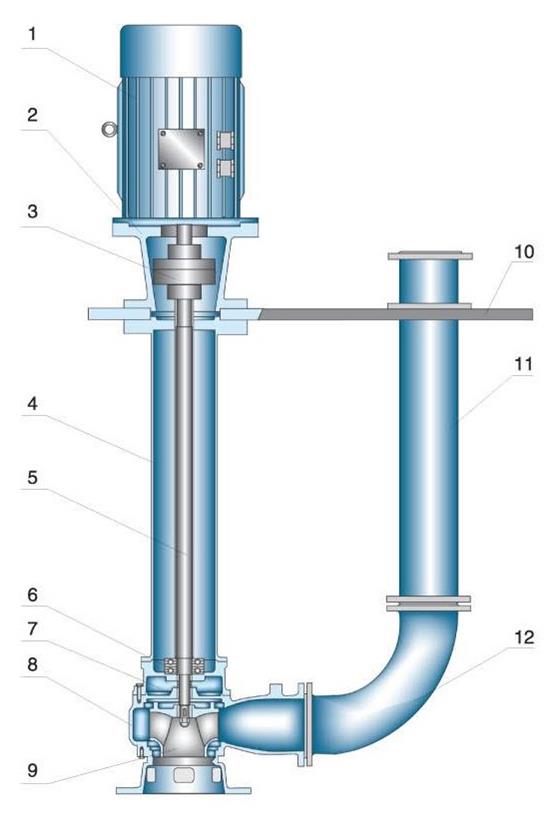

CONSTRUCTION DRAWING
1. Motor 2. Motor Basement 3. Shaft Coupling 4. Coupling Pipe
5. Shaft 6. Bearing 7. Cover Plate 8. Frame Plate 9. Impeller
10. Basement 11. Discharge 12. Elbow
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 2.5SLSPWL | 43-103 | 14-34 | 2920 | 58 | 15 | 80 | 65 |
| 6SLSPWL | 200-450 | 12-37 | 980-1450 | 67 | 55 | 200 | 150 |
| 8SLSPWL | 350-700 | 9.5-29 | 730-980 | 76 | 75 | 250 | 200 |
| 50SLSPWL | 10-19 | 14.5-18 | 1440 | 29 | 4 | 50 | 50 |
| 80SLSPWL | 42-72 | 12.5-14 | 1440 | 54 | 5.5 | 100 | 80 |
