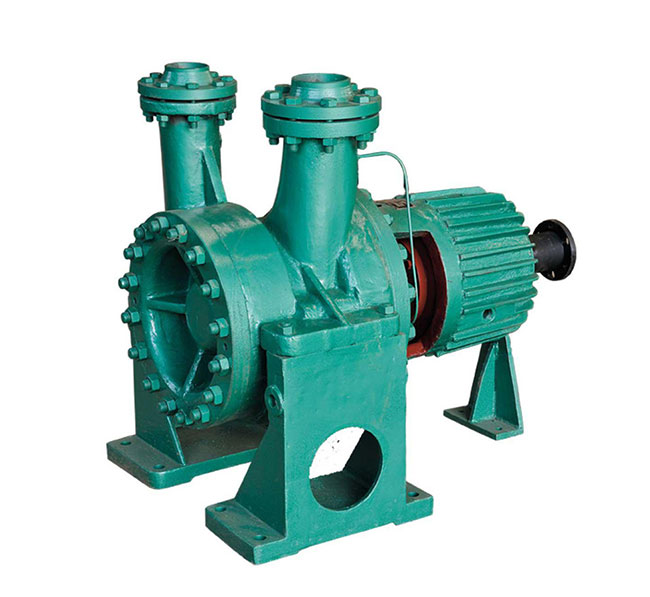

مضخة الطرد المركزي
Pump Type: Centrifugal
Capacity: 2.4-600m³/h
Head: 33-360m
Size: Suction DN40-DN250，Discharge DN25-DN200
Original: China
DESCRIPTION
SLSAY type centrifugal pump is divided into six structural forms: single-stage single-suction cantilever type, two-stage single-suction cantilever type, single-stage double-suction cantilever type, single-stage double-suction two-support type, two-stage double-suction two-support type, two-stage single-suction two-support type, and two-stage single-suction two-support type.It is our company's joint domestic pump experts choose domestic excellent hydraulic model design and development.It is suitable for transporting oil, liquefied petroleum gas and other media without solid particles.
APPLICATIONS
SLSAY type centrifugal oil pump can be used in petroleum refining, petrochemical and chemical industry and other transport of oil, liquefied petroleum gas and other media without solid particles.

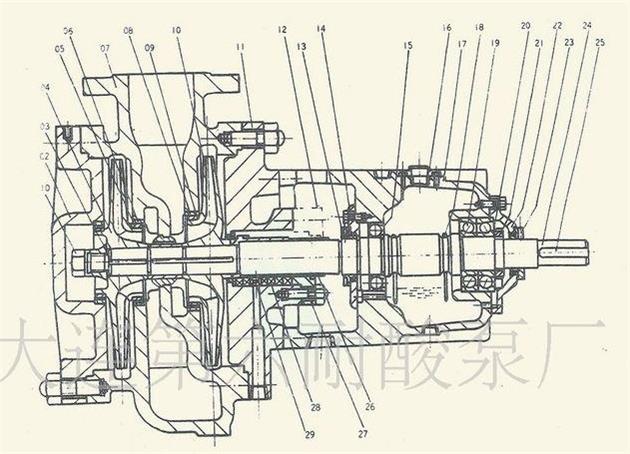

CONSTRUCTION DRAWING
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| 40SLSAY40 | 2.4-7.2 | 44-90 | 2950 | 30 | 7.5 | 40 | 25 |
| 50SLSAY60 | 5.5-13.2 | 38-130 | 2950 | 38 | 15 | 50 | 40 |
| 65SLSAY60 | 13-27 | 35-68 | 2950 | 51 | 11 | 65 | 50 |
| 65SLSAY100 | 11.5-30 | 69-220 | 2950 | 46 | 37 | 65 | 50 |
| 80SLSAY60 | 24-60 | 33-110 | 2950 | 60 | 18.5 | 80 | 65 |
| 80SLSAY100 | 24-60 | 62-220 | 2950 | 58 | 75 | 80 | 65 |
| 100SLSAY60 | 48-120 | 34-67 | 2950 | 71 | 37 | 100 | 80 |
| 10SLSAY120 | 48-120 | 70-240 | 2950 | 60 | 160 | 100 | 80 |
| 150SLSAY75 | 87-216 | 39-91 | 2950 | 76 | 75 | 150 | 125 |
| 150SLSAY150 | 103-240 | 91-328 | 2950 | 71 | 315 | 150 | 125 |
| 200SLSAY75 | 135-360 | 40-83 | 2950 | 79 | 110 | 200 | 150 |
| 200SLSAY150 | 172-360 | 87-330 | 2950 | 72 | 450 | 200 | 150 |
| 250SLSAY80 | 222-600 | 38-92 | 2950 | 81 | 185 | 250 | 200 |
| 250SLSAY150 | 240-600 | 90-360 | 2950 | 74 | 630 | 250 | 200 |
