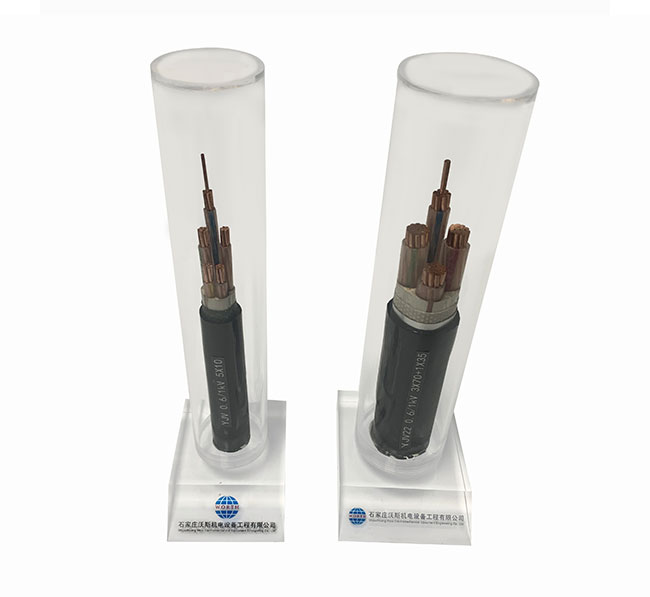

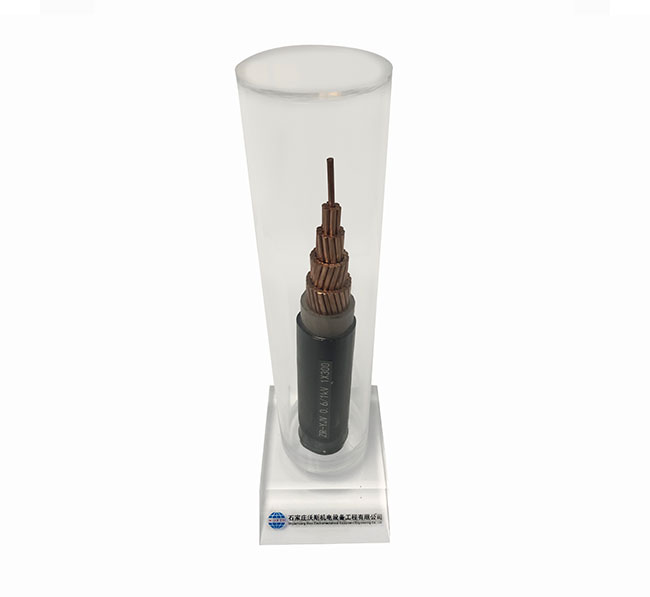

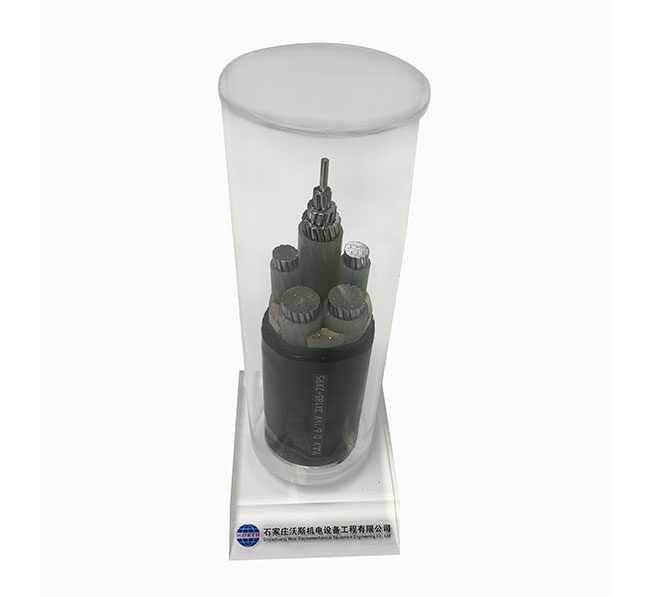

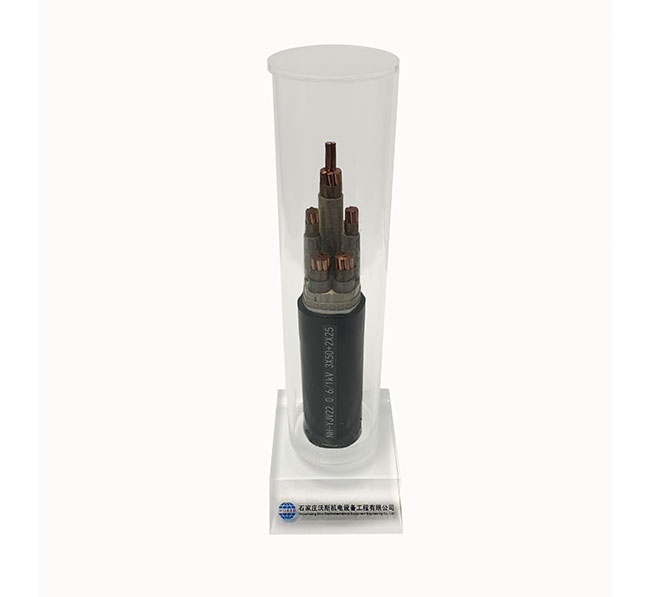

Cross-linked polyethylene low voltage power cable is characterized with high mechanical strength, strong resistance to environmental stress, excellent electrical properties, powerful resistance to chemical attack.
DESCRIPTION
Cross-linked polyethylene low voltage power cable is characterized with high mechanical strength, strong resistance to environmental stress, excellent electrical properties, powerful resistance to chemical attack. In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv. In terms of the main feature of anti-flaming cable, the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station, subway, tunnel, high-rise building, large industrial and mining enterprise, oil field, coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706, IEC 60502 and relevant domestic and international standard. For example, BS, VDE, JIS, AEIC, and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor: 90℃ in normal condition and 250℃ in case of short circuit (maximum duration of short circuit is 5s).
PERFORMANCE PARAMETERS
NO.of cores×section (mm²) | Normal insulation thickness(mm) | Normal thickness of oversheath | Approximate overall diameter of cable(mm) | Approximate weight of cable(kg/km) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Cu | AL | ||||||||
| Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | ||
| 4×4 | 0.7 | 1.8 | 1.8 | 12.5 | 18.1 | 282 | 430 | / | / |
| 4×6 | 0.7 | 1.8 | 1.8 | 14.7 | 17 | 383 | 545 | / | / |
| 4×10 | 0.7 | 1.8 | 1.8 | 16.9 | 19.1 | 565 | 752 | 390 | 517 |
| 4×16 | 0.7 | 1.8 | 1.8 | 19.3 | 21.6 | 783 | 1020 | 416 | 663 |
| 4×25 | 0.9 | 1.8 | 1.8 | 23.5 | 25.7 | 1241 | 1502 | 593 | 902 |
| 4×35 | 0.9 | 1.8 | 1.8 | 26.7 | 28.7 | 1631 | 1957 | 776 | 1096 |
| 4×50 | 1.0 | 1.8 | 1.9 | 28.0 | 32.6 | 2080 | 2812 | 961 | 1770 |
| 4×70 | 1.1 | 2.0 | 2.1 | 33.2 | 37.5 | 2952 | 3796 | 1302 | 2222 |
| 4×95 | 1.1 | 2.1 | 2.3 | 38.0 | 42.6 | 3970 | 4962 | 1693 | 2757 |
| 4×120 | 1.2 | 2.3 | 2.4 | 40.9 | 46.4 | 4894 | 5913 | 2077 | 3363 |
| 4×150 | 1.4 | 2.4 | 2.6 | 46.0 | 51.3 | 5980 | 7170 | 2852 | 3878 |
| 4×185 | 1.6 | 2.6 | 2.7 | 52.5 | 57.8 | 7442 | 8802 | 3173 | 4618 |
| 4×240 | 1.7 | 2.8 | 3.0 | 59.4 | 64.6 | 9764 | 11289 | 4032 | 5782 |
| 4×300 | 1.8 | 3.0 | 3.1 | 66.2 | 71.6 | 12122 | 13856 | 4924 | 6735 |
| 4×400 | 2.0 | 3.3 | 3.4 | 73.8 | 80.3 | 15624 | 18407 | 6272 | 9313 |
| 4×500 | 2.2 | 3.5 | 3.7 | 89.3 | 96 | 19877 | 23264 | 7667 | 11062 |
| 4×630 | 2.4 | 3.8 | 4.0 | 99.6 | 106.3 | 25124 | 28895 | 9514 | 13293 |
