The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.

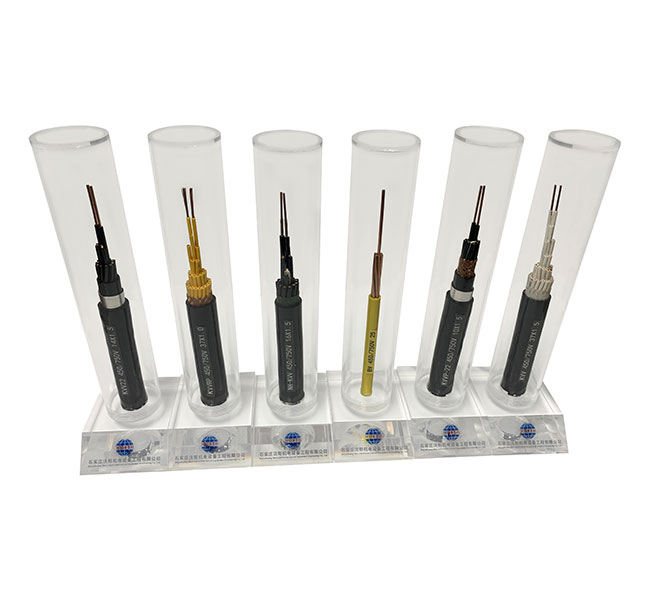

LIYY Signal and Control Cable Characteristics
A.The maximum permissible continuous operating temperature is 70℃.
B.The lowest installation temperature of the cable is 0℃.
C.Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.
APPLICATIONS
The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.
PERFORMANCE PARAMETERS
LIYY Signal and Control Cable
| Type | Description | Main Application |
| KYJV | Copper conductor XLPE insulated and PVC sheathed control cable | Laying indoors,in trenches, in ducts and directly in ground |
| KYJVR | Copper conductor XLPE insulated and PVC sheathed | |
| flexible control cable | ||
| KYJVP | Copper conductor XLPE insulated and PVC sheathed control cable | Laying indoors,in trenches, in ducts directly in ground and other places that interference-resistance is requested. |
| with copper tape lapping screen | ||
| KYJVP2 | Copper conductor XLPE insulated and PVC sheathed flexible control | |
| cable with braiding screen | ||
| KYJVRP | Copper conductor XLPE insulated and PVC sheathed control cable | |
| with copper tape longitudinal screen | ||
| KYJVRP2 | Copper conductor XLPE insulated and PVC sheathed flexible control | |
| cable with copper tape lapping screen | ||
| KYJV22 | Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour | For flxed installation,laying indoors, in trenches and ducts,directly in ground where heavier mechanical force withstood |
| KYJV32 | Copper conductor XLPE insulated and PVC sheathed control cable | For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force |
| with steel wire armour | ||
| KYJVP2-22 | Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen | For fixed installation,laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood. |
