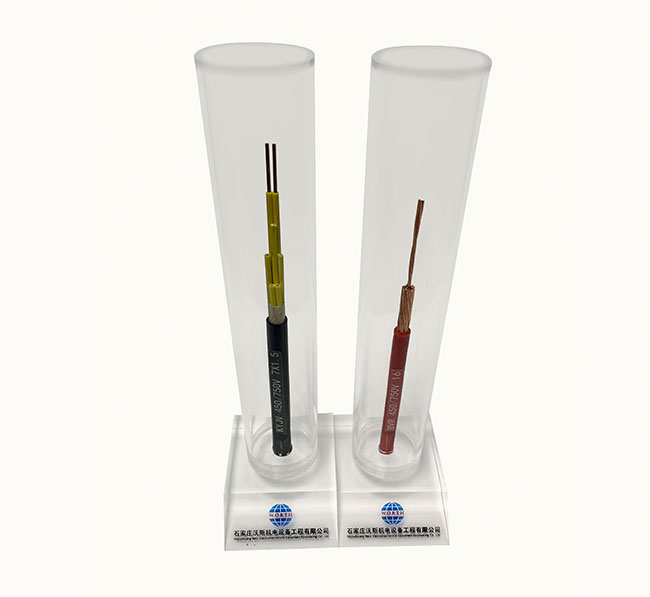

The BV cable can be used for general purpose, like power lighting home electric equipment or telecommunication equipment, household electric appliance, meter and instrument, etc.
Technique Data
1. U0/U: 450/750V;300/500V.
2. Standard: IEC 60227, BS 6004, VDE0281, GB/T 5023,JB/T8734.
3. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement.
4. Conductor: Class 2 Plain annealed copper wires,stranded.
5. Insulation: PVC.
6. Cross section area: 1.5~630mm².
7. Color: Red,brown,blue,black,green/yellow or others on request.
8. Packing:100 meters per roll or as requirement.
9. Certification : ISO9001/ISO14001 /OHSAS18001/CCC.
10. Remark: Flame retardant, fire resistance, low smoking and Halogen free, or other property can be available.
| Product Name | 1.5mm 2.5mm 4mm 6mm 10mm 16mm AWG PVC insulated copper electric cable wire |
| Color | Red, black or OEM |
| Standard | DIN GB ISO JIS BA ANSI |
| Application | Construction, Utility, Industrial |
| Insulation | PVC/PE/XLPE |
| Origin | China |
